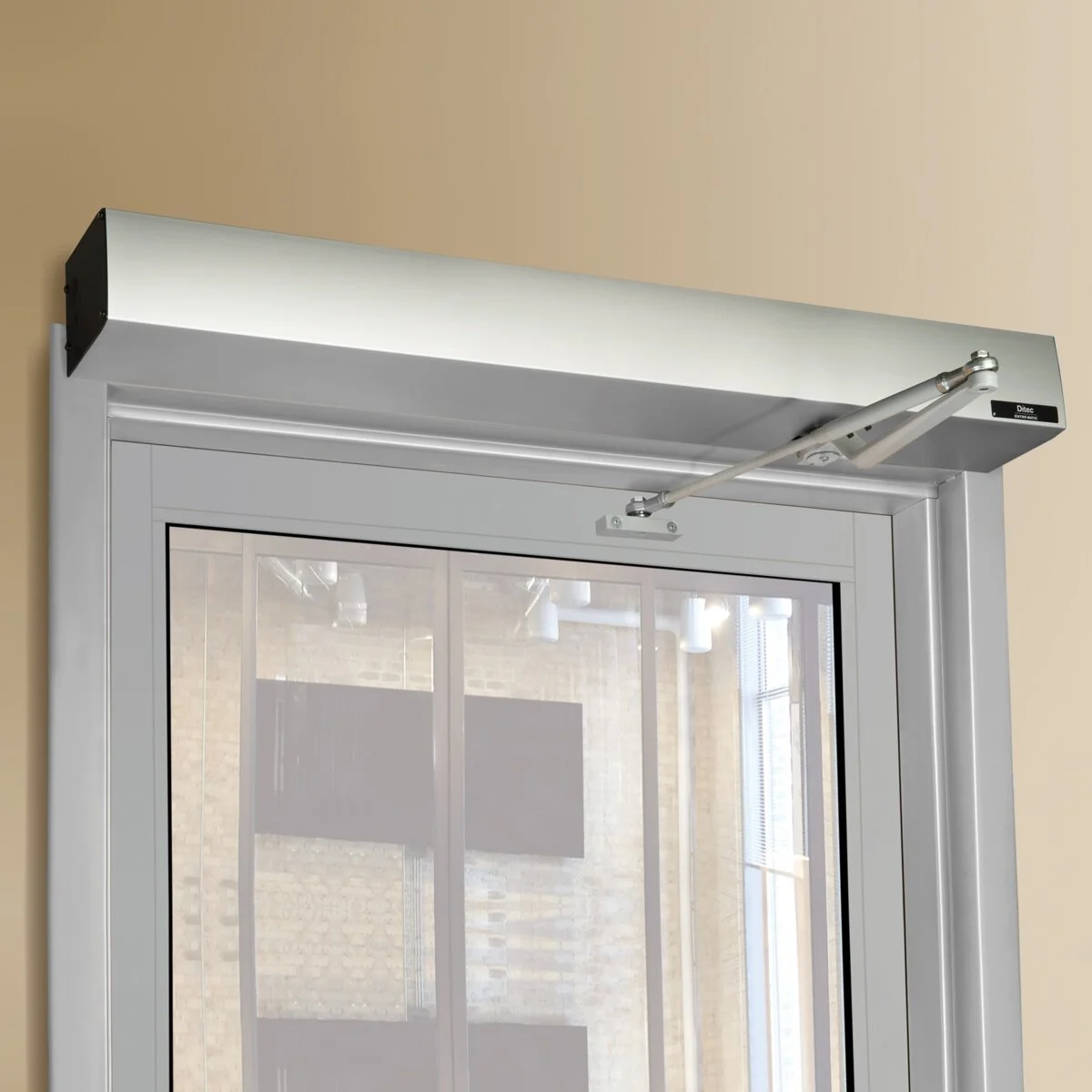

HA9

The HA9 low energy operator comes loaded with features while offering the same quiet, dependable operation you've come to expect in the low-profile header size you love. The HA9 is perfect for high-traffic locations including schools & universities, hospitals, retail stores, airports, convention centers, casinos, industrial buildings and offices.

    • Electro Mechanical Design – for simple dependable operation

    • Door Stop engineered to resist abusive situations

    • Cast Alloy Arms

    • Quiet Operation

    • Power Assist

    • One Touch Learn Cycle

    • Plug-n-Play design for fast trouble free installation

    • Stack Pressure Compensation

    • Adapts to environmental conditions

    • Electric Strike Integration

    • Lock Retry

    • Compatible with most safety and activation devices

    • Integrates with building access & security systems

    • Energy Saving for low running cost

    • Lock Kick for a positive latch during fire/safety events

    • Stop on Stall

    • Reverse on Obstruction

    • Sensor Monitoring

    • Built to outlast the competition

    • Perfect for high traffic locations

    • Header Profile Dimensions: 4 1/8" x 5 1/8"

    • Motor Type: Electro-Mechanical

    • Manual Opening/Closing Force: Adjustable 5 to 30 lbs.

    • Operating Voltage: 120 VAC

    • Auxiliary Power Output: 24 VDC @ 1/2 amp (optional upgrade to 1.1 amps)

    • Push Reveal: Up to 14"

    • Pull Reveal: Up to 2 3/8"

    • Non-Handed: Available in push or pull

    • ANSI A156.19 Compliant: Yes

    • UL/CUL Listing for UL 325/UL10C: Yes
