5800 IC-Matic

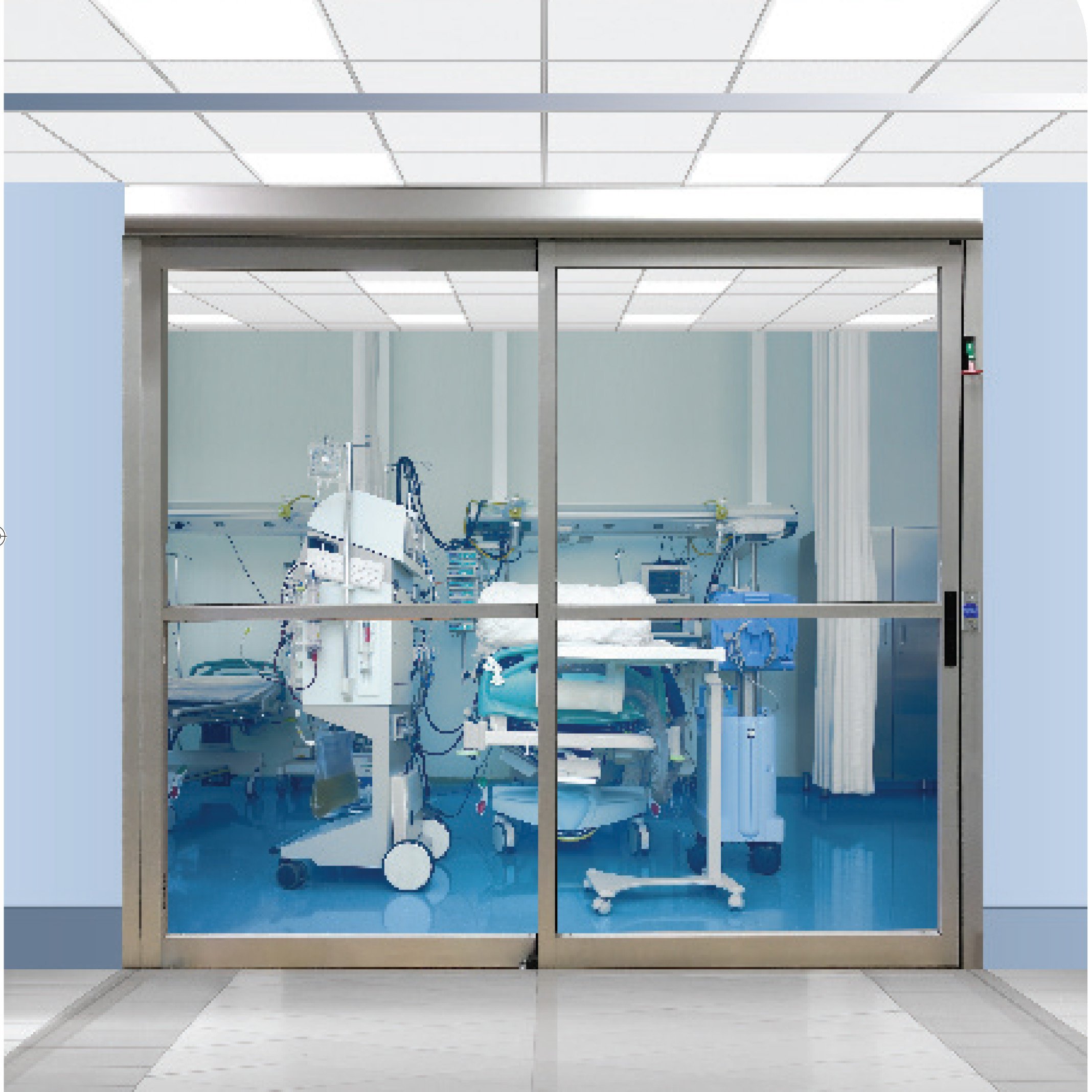

The Record IC-Matic is a low energy power operation sliding door system ideal for intensive care wards. A sleek design and reduced header height proves attractive while the ability to open automatically through jamb or wall mounted touchless wall plates eliminates the need to physically touch an activation device, thereby reducing greatly the spread of germs.
-
No hookbolt protrusions in opening under normal operation
Fail secure locking with manual emergency override
Improved 2-way flushbolt design on sidelite
When engaged, a floor 'foot" will apply pressure to floor, keeping sidelite in line with frame for normal operation.
Simple one motion disengagement for breakout access.
Single and Bi-part Sliding Door Packages
Meets UL1784 requirements
Sidelites are 1¼" narrower than the slide panel
Increased DOW over standard 5900 ICU Doors
41 5/8" DOW on a 96" OFW
Eliminates finger pinch protection during breakout
Header Profile: 4.25" H x 7.25" W
Uses standard 4.5" jamb profiles: giving the header a 2.75" overhang
All available knowing act activations Motion Sensors
Wave Activation Card Reader
Will meet ANSI 156-38 low energy power operated sliding door standard
Requires 120V power hookup
Able to accommodate glass sizes up to 1" including any "Smart Glass" products
Always equipped with record Smart Panel
