5500 Series

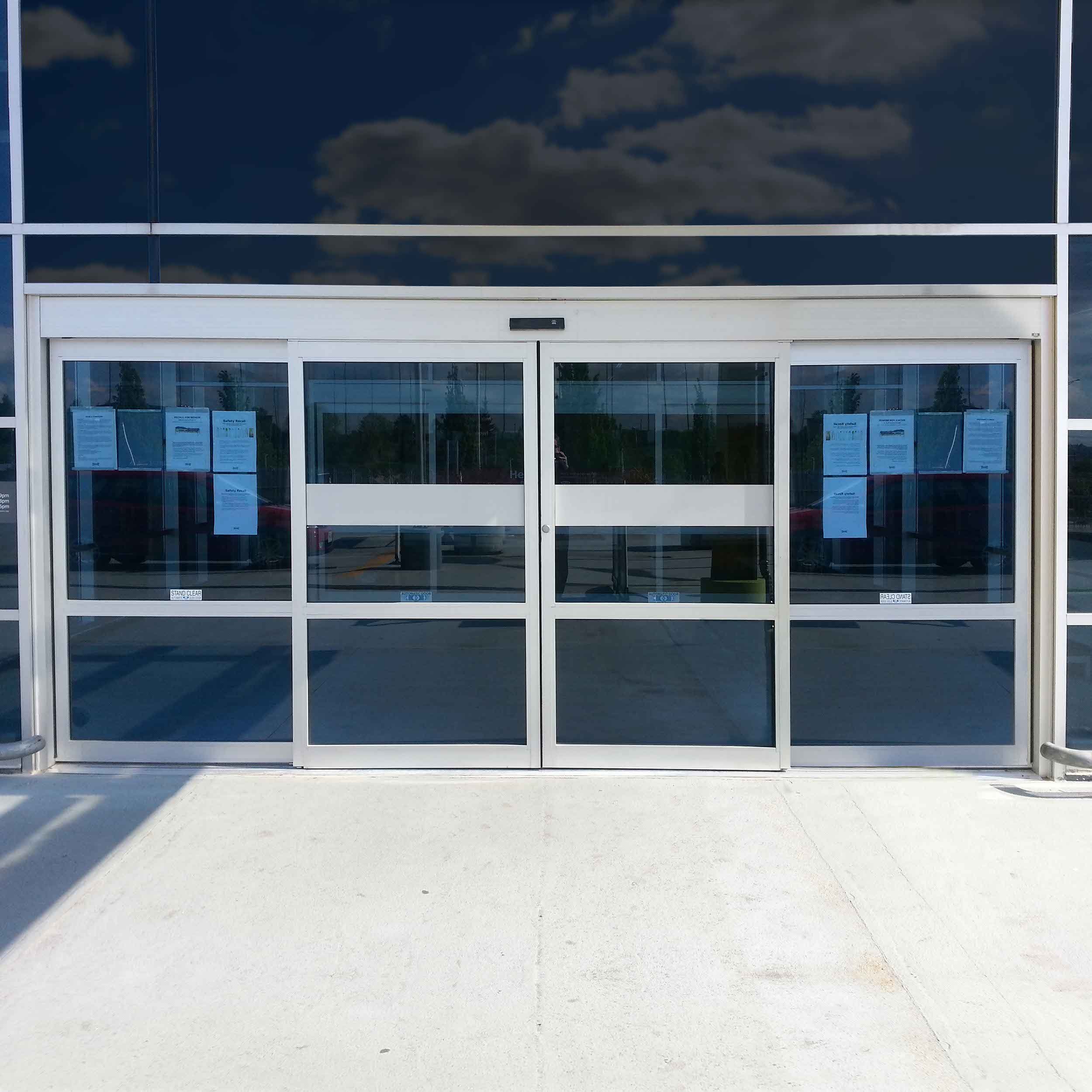

The Record 5500 Series Sliding Door System is designed and tested for windload ratings of +55 PSF/-60 PSF (Miami-Dade County, Florida NOA 21-0620.08 ). Strengthened with steel inserts and designed with durability in mind, the 5500 series also provides for air infiltration requirements.
Offering multiple configurations and functions, the Record 5500 series offers multiple features to ensure the safest and most attractive entrance available.
-
Automatic mode with full opening and reduced opening widths
Automatic mode in one-way (exit only) for traffic control
Adjustable reduced opening mode
Continuously open: door remains open; either full open or reduced opening width
Off mode: door can be moved by hand
Safety sensors prevent the door from shutting if people or objects are detected.
Safety automatic reversing mechanism: if the door leaves are inhibited when closing, they are immediately re-opened (automatic reverse 2-step adjustable). If the door leaves are hindered when opening, they are immediately stopped.
The obstacle's position is stored and will be slowly approached during the next movement.
In the event of power failure, the emergency fail close or emergency opening is guaranteed by the optional emergency power options.
Sidelite protection – additional sensors located above the opening path of the door will slow the opening if a person or object will inhibit the door opening normally.
Steel-reinforced doors and panels
No lock required on SO panels
Complies with Dade County - Miami-Dade County, Florida NOA 21-0620.08
Incorporate Glazing from 1/4" to 1" (in 1/4" increments)
Wind load Series
Integrated hydraulic support in both SX panels (slide/swing) and SO (swing sidelite).
Door closers are built into the top rail to ensure the door closes and remains operable after emergency breakout egress.
Recessed panic hardware is available for full-breakout and fixed panel applications which will comply with all existing exit codes.
-
Motor: low energy/high efficiency 1/8 HP
Input Power: 120v AC / 60Hz / 1 phase / 15amp
Max Overall Frame Width: 84" (single slide); 168" (bi-part)
Max Overall Frame Height: 96”
Header Size: Height: 7 ¾” / Depth 4 ½”
Standard colors: clear or dark bronze anodized
Design Loads (PSF): +55 PSF / -60 PSF
Opening/Closing Speed: adjustable
Open braking force & torque: adjustable
Failure detection & auto reset: yes
Control board self-diagnosis: yes
Carrier wheels: 4 wheels per panel
Operating Conditions: -40 to +130 Fahrenheit
Switch: S.M.A.R.T. Panel
Recommended Max Door Weight: consult factory
Certifications: ANSI/BHMA A156.10 and UL325
Steel reinforced doors and panels
Electro-Mechanical Locking Device: Fail safe / Fail secure
Impact Levels: LMI (Large Missile Impact)
Miami-Dade County, Florida NOA 21-0620.08
Certifications: ANSI/BHMA A156.10, ICC A117.1, ICC/IBC (International Building Code), UL/CUL (Approved for use in
